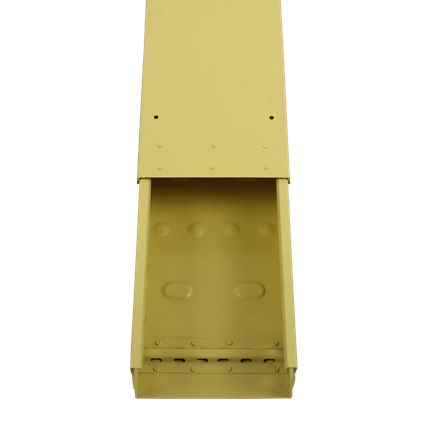

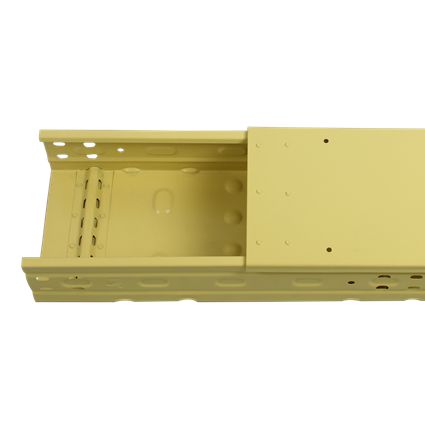

Solid Embossed Cable Tray

■ High strength
■ Light weight
■ Energy-saving
■ Long working lift
■ Competitive price

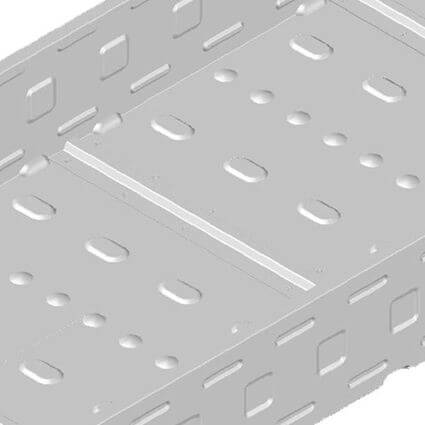

Improve structure by modern design technology-3D MADAS, use embossed base plate & reinforced bar to increase strength much, save 20~30% materials against XQJ Series.

1. Dimension

Item

Width

Heigh

Thickness

Length

Remark

(mm)

(mm)

(mm)

(mm)

XMJZ Series Cable Tray

50

50

0.8

2000

Customized is available

75

50

0.8

100

50/100

0.8

150

50/100/150

0.8

200

50/100/150/200

0.8

300

50/100/150/200

1

400

50/100/150/200

1

500

50/100/150/200

1.2

600

50/100/150/200

1.2

800

50/100/150/200

1.5

1000

50/100/150/200

1.5

1200

50/100/150/200

1.5



2. Model Explanation

Model-Explanation



3. Material & Finish (Sheet 1)

Code

Description

Feature


G

Pre-Galvanized Steel

Usually for indoor, economic, high strength, heavy weight, thickness of zinc about 6um, corrosion resistance guarantee 10 years (Middle Corrosion Condition), wide application.

XQJ-G-C1

S

Stainless Steel

For indoor & outdoor, corrosion resistance guarantee 30 years (Middle Corrosion Condition), recommended new generation materials, include SS201, SS430, SS304, SS316.

XQJ-S-C1

A

Aluminum Alloy

For indoor & outdoor, excellent corrosion resistance, light weight, environment protection.

XQJ-A-C1

HDG

Hot-Dipped-Galvanized Steel

Usually for outdoor, excellent corrosion resistance, but production process pollute environment seriously, it’s replaced by Stainless Steel & Powder Coating step by step.

XQJ-HDG-C1

P

Powder Coating

Coating by Epoxy Powder for Pre-Galvanized Steel, Stainless Steel, Aluminum Alloy to provide maximum protection, reinforced corrosion resistance, high hardness, smooth surface, fire-proof, moisture-proof, dust-proof, color can be customized to as line mark, more and more widely applied.

XMBG-P-C1



4. Structure Type (Sheet 2)

Code

Description

Feature


C

Solid Bottom

■ Suit for indoor.

■ Fire-proof, moisture-proof, dust-proof, provides the maximum protection for cable.

■ Mainly choose for minimal heat generating cable or delicate cable.

Sheet2-XMJZ-X-C-01A

P

Perforated Bottom

■ Suit for indoor & outdoor.

■ Ventilated, moisture will leak through bottom hole.

■ Small diameter cable can exit through bottom hole.

Sheet2-XMJZ-X-P-01A

T

Ladder Bottom

■ Suit for indoor & outdoor.

■ Economical, light weight, be applied widely.

■ Ventilated, heat cable produce dissipate effectively.

Sheet2-XMJZ-X-T-01A



5. Shape Type (Sheet 3)

Code

Description


01A

Straight Section

XQJ-X-C-01A

02A

Horizontal Bend

XQJ-X-C-02A

02B

Vertical Upward Bend

XQJ-X-C-02B

02C

Vertical Downward Bend

XQJ-X-C-02C

02D

Vertical Left-Downward Bend

XQJ-X-C-02D

02E

Vertical Right-Downward Bend

XQJ-X-C-02E

02F

Vertical Left-Upward Bend

XQJ-X-C-02F

02G

Vertical Right-Upward Bend

XQJ-X-C-02G

03A

Horizontal Tee

XQJ-X-C-03A

03B

Vertical Upward Tee

XQJ-X-C-03B

03C

Vertical Downward Tee

XQJ-X-C-03C

03D

Vertical Side Upward Tee

XQJ-X-C-03D

03E

Vertical Side Downward Tee

XQJ-X-C-03E

03F

Vertical Corner Upward Tee

XQJ-X-C-03F

03G

Vertical Corner Left-Downward Tee

XQJ-X-C-03G

03H

Vertical Corner Right-Downward Tee

XQJ-X-C-03H

03I

Vertical Right Tee

XQJ-X-C-03I

03J

Vertical Left Tee

XQJ-X-C-03J

03K

Vertical Right-Downward Tee

XQJ-X-C-03K

03L

Vertical Left-Downward Tee

XQJ-X-C-03L

04A

Horizontal Cross

XQJ-X-C-04A

04B

Vertical Cross

XQJ-X-C-04B

04C

Vertical Upward Cross

XQJ-X-C-04C

04D

Vertical Downward Cross1

XQJ-X-C-04D

04E

Vertical Downward Cross2

XQJ-X-C-04E

05A

Left Reducer

XQJ-X-C-05A

05B

Right Reducer

XQJ-X-C-05B

05C

Middle Reducer

XQJ-X-C-05C

06A

Riser

XQJ-X-C-06A
