Ohm Tube Clamp

■ Simple Structure
■ Stable Performance
■ Economy
■ Wide Application
■ Size Adjustable
■ Large Compressive Strength
■ Various Combinations



Model Pipe Outer Diameter
D ( mm )
Size
W*T ( mm)
Board Width
( mm )
Bolt Specifications Package
( pcs )
XM-KZD-OP-114 114 198*6 40 M12 5
XM-KZD-OP-139 139 241*6 40 M12 5
XM-KZD-OP-168 168 270*6 40 M12 5
XM-KZD-OP-219 219 321*6 40 M12 5


anti-seismic bracket-details1

Practical Application

■ Suitable for pipeline installation between DN100-DN350.
■ Used to fix the pipe on the cross brace channel steel.
■ Multi-tube combined bracket, suitable for flat installation at the bottom of the pipeline.



anti-seismic bracket-details3

Installation

■ Just buckle the pipe clamp on the pipe and the bolts on both sides can be locked.
■ No need for screw and tube buckle pads.
■ The diameter of the fixed pipe cannot be adjusted.



anti-seismic bracket-details2

Structural Appearance

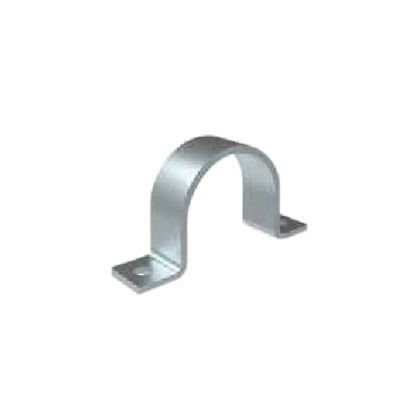

■ Ohm shape monolithic tube clamp.
■ Bolt on both sides.



anti-seismic bracket-details4

Technology

■ Material: Q235B, produced according to DIN EN10025 standard.
■ Galvanized: electro-galvanized, thickened by 8μm and closed. Produced according to GB T 9799 standard.
■ Other anti-corrosion treatment: hot dip galvanized, epoxy spray.
