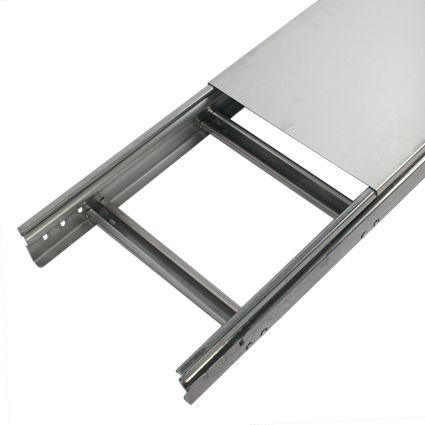

Ladder Corrugated Cable Tray

■ New generation cable tray
■ Excellent loading capacity
■ Light weight
■ Energy-saving
■ Long working life
■ Competitive price
Optimize design for bottom & side by Finite Element Method (FEM), increase inertia moment of bottom to enhance loading capacity, assemble by mechanical arm & laser welding assure fastness & accuracy, using heat conduction and air heat exchange, to maximize the heat generated by the cable conductor in cable tray to be fully dissipated, thereby reducing resistance value, loss of power lines and improving utilization rate of electric energy, achieve the effect of energy saving.

1. Dimension

Item

Width

Heigh

Thickness

Length

Remark

(mm)

(mm)

Bottom (mm)

Side

(mm)

(mm)

XMBG Series Cable Tray

300

100/150/200

0.5

1

2000

Customized is available

400

100/150/200

0.5

1

500

100/150/200

0.6

1.2

600

100/150/200

0.6

1.2

800

100/150/200

0.6

1.5

1000

100/150/200

0.7

1.5

1200

100/150/200

0.7

1.5



2. Model Explanation

Model-Explanation



3. Material & Finish (Sheet 1)

Code

Description

Feature


G

Pre-Galvanized Steel

Usually for indoor, economic, high strength, heavy weight, thickness of zinc about 6um, corrosion resistance guarantee 10 years (Middle Corrosion Condition), wide application.

XQJ-G-C1

S

Stainless Steel

For indoor & outdoor, corrosion resistance guarantee 30 years (Middle Corrosion Condition), recommended new generation materials, include SS201, SS430, SS304, SS316.

XQJ-S-C1

A

Aluminum Alloy

For indoor & outdoor, excellent corrosion resistance, light weight, environment protection.

XQJ-A-C1

HDG

Hot-Dipped-Galvanized Steel

Usually for outdoor, excellent corrosion resistance, but production process pollute environment seriously, it’s replaced by Stainless Steel & Powder Coating step by step.

XQJ-HDG-C1

P

Powder Coating

Coating by Epoxy Powder for Pre-Galvanized Steel, Stainless Steel, Aluminum Alloy to provide maximum protection, reinforced corrosion resistance, high hardness, smooth surface, fire-proof, moisture-proof, dust-proof, color can be customized to as line mark, more and more widely applied.

XMBG-P-C1



4. Structure Type (Sheet 2)

Code

Description

Feature


C

Solid Bottom

■ Suit for indoor.

■ Fire-proof, moisture-proof, dust-proof, provides the maximum protection for cable.

■ Mainly choose for minimal heat generating cable or delicate cable.

 sheet2-XMBG-X-C-01A

P

Perforated Bottom

■ Suit for indoor & outdoor.

■ Ventilated, moisture will leak through bottom hole.

■ Small diameter cable can exit through bottom hole.

sheet2-XMBG-X-P-01A

T

Ladder Bottom

■ Suit for indoor & outdoor.

■ Economical, light weight, be applied widely.

■ Ventilated, heat cable produce dissipate effectively.

sheet2-XMBG-X-T-01A



5. Shape Type (Sheet 3)

Code

Description


01A

Straight Section

XQJ-X-P-01A

02A

Horizontal Bend

XQJ-X-P-02A

02B

Vertical Upward Bend

XQJ-X-P-02B

02C

Vertical Downward Bend

XQJ-X-P-02C

02D

Vertical Left-Downward Bend

XQJ-X-P-02D

02E

Vertical Right-Downward Bend

XQJ-X-P-02E

02F

Vertical Left-Upward Bend

XQJ-X-P-02F

02G

Vertical Right-Upward Bend

XQJ-X-P-02G

03A

Horizontal Tee

XQJ-X-P-03A

03B

Vertical Upward Tee

XQJ-X-P-03B

03C

Vertical Downward Tee

XQJ-X-P-03C

03D

Vertical Side Upward Tee

XQJ-X-P-03D

03E

Vertical Side Downward Tee

XQJ-X-P-03E

03F

Vertical Corner Upward Tee

XQJ-X-P-03F

03G

Vertical Corner Left-Downward Tee

XQJ-X-P-03G

03H

Vertical Corner Right-Downward Tee

XQJ-X-P-03H

03I

Vertical Right Tee

XQJ-X-P-03I

03J

Vertical Left Tee

XQJ-X-P-03J

03K

Vertical Right-Downward Tee

XQJ-X-P-03K

03L

Vertical Left-Downward Tee

XQJ-X-P-03L

04A

Horizontal Cross

XQJ-X-P-04A

04B

Vertical Cross

XQJ-X-P-04B

04C

Vertical Upward Cross

XQJ-X-P-04C

04D

Vertical Downward Cross1

XQJ-X-P-04D

04E

Vertical Downward Cross2

XQJ-X-P-04E

05A

Left Reducer

XQJ-X-P-05A

05B

Right Reducer

XQJ-X-P-05B

05C

Middle Reducer

XQJ-X-P-05C

06A

Riser

XQJ-X-P-06A

07A

Vertical Adjustable Bend

XQJ-X-P-07A2
