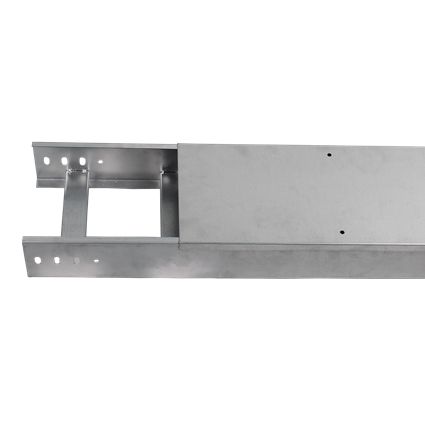

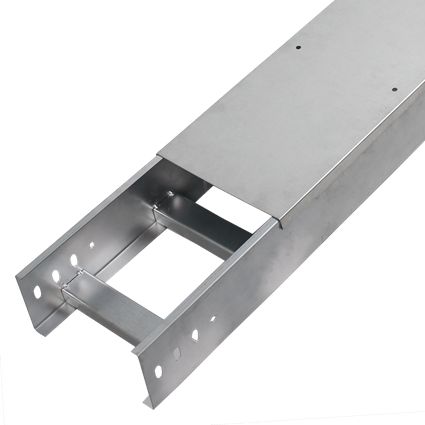

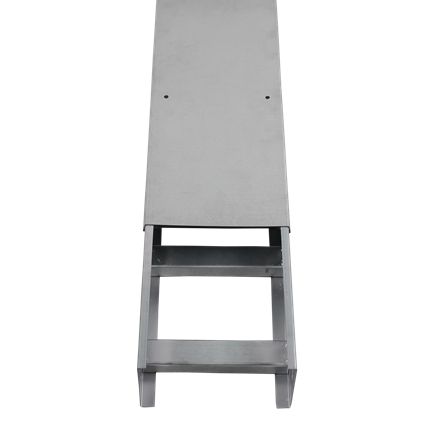

Ladder Flat Cable Tray

■ Simple structure
■ Stable performance
■ Economic
■ Wide application



1. Dimension



Item

Width

Heigh

Thickness

Length

Remark

(mm)

(mm)

(mm)

(mm)

XQJ Series Cable Tray





50

50

1

2000

Customized is available

75

50

1

100

50/100

1

150

50/100/150

1

200

50/100/150/200

1.2

300

50/100/150/200

1.2

400

50/100/150/200

1.5

500

50/100/150/200

2

600

50/100/150/200

2.5



2. Model Explanation



Model-Explanation



3. Material & Finish (Sheet 1)



Code

Description

Feature


G

Pre-Galvanized Steel

Usually for indoor, economic, high strength, heavy weight, thickness of zinc about 6um, corrosion resistance guarantee 10 years (Middle Corrosion Condition), wide application.

XQJ-G-C1

S

Stainless Steel

For indoor & outdoor, corrosion resistance guarantee 30 years (Middle Corrosion Condition), recommended new generation materials, include SS201, SS430, SS304, SS316.

XQJ-S-C1

A

Aluminum Alloy

For indoor & outdoor, excellent corrosion resistance, light weight, environment protection.

XQJ-A-C1

HDG

Hot-Dipped-Galvanized Steel

Usually for outdoor, excellent corrosion resistance, but production process pollute environment seriously, it’s replaced by Stainless Steel & Powder Coating step by step.

XQJ-HDG-C1

P

Powder Coating

Coating by Epoxy Powder for Pre-Galvanized Steel, Stainless Steel, Aluminum Alloy to provide maximum protection, reinforced corrosion resistance, high hardness, smooth surface, fire-proof, moisture-proof, dust-proof, color can be customized to as line mark, more and more widely applied.

XMBG-P-C1



4. Structure Type (Sheet 2)



Code

Description

Feature


C

Solid Bottom

■ Suit for indoor.

■ Fire-proof, moisture-proof, dust-proof, provides the maximum protection for cable.

■ Mainly choose for minimal heat generating cable or delicate cable.

Sheet2-XQJ-X-C-01A

P

Perforated Bottom

■ Suit for indoor & outdoor.

■ Ventilated, moisture will leak through bottom hole.

■ Small diameter cable can exit through bottom hole.

Sheet2-XQJ-X-P-01A

T

Ladder Bottom

■ Suit for indoor & outdoor.

■ Economical, light weight, be applied widely.

■ Ventilated, heat cable produce dissipate effectively.

Sheet2-XQJ-X-T-01A



5. Shape Type (Sheet 3)



Code

Description

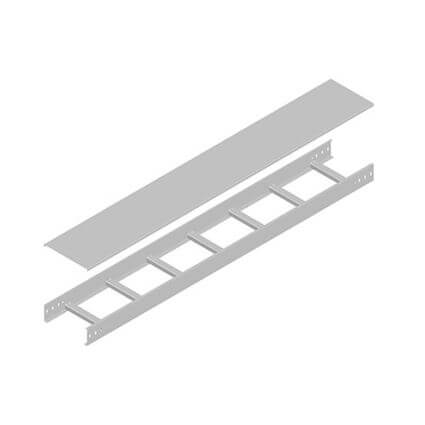

01A

Straight Section

XQJ-X-C-01A

02A

Horizontal Bend

XQJ-X-C-02A

02B

Vertical Upward Bend

XQJ-X-C-02B

02C

Vertical Downward Bend

XQJ-X-C-02C

02D

Vertical Left-Downward Bend

XQJ-X-C-02D

02E

Vertical Right-Downward Bend

XQJ-X-C-02E

02F

Vertical Left-Upward Bend

XQJ-X-C-02F

02G

Vertical Right-Upward Bend

XQJ-X-C-02G

03A

Horizontal Tee

XQJ-X-C-03A

03B

Vertical Upward Tee

XQJ-X-C-03B

03C

Vertical Downward Tee

XQJ-X-C-03C

03D

Vertical Side Upward Tee

XQJ-X-C-03D

03E

Vertical Side Downward Tee

XQJ-X-C-03E

03F

Vertical Corner Upward Tee

XQJ-X-C-03F

03G

Vertical Corner Left-Downward Tee

XQJ-X-C-03G

03H

Vertical Corner Right-Downward Tee

XQJ-X-C-03H

03I

Vertical Right Tee

XQJ-X-C-03I

03J

Vertical Left Tee

XQJ-X-C-03J

03K

Vertical Right-Downward Tee

XQJ-X-C-03K

03L

Vertical Left-Downward Tee

XQJ-X-C-03L

04A

Horizontal Cross

XQJ-X-C-04A

04B

Vertical Cross

XQJ-X-C-04B

04C

Vertical Upward Cross

XQJ-X-C-04C

04D

Vertical Downward Cross1

XQJ-X-C-04D

04E

Vertical Downward Cross2

XQJ-X-C-04E

05A

Left Reducer

XQJ-X-C-05A

05B

Right Reducer

XQJ-X-C-05B

05C

Middle Reducer

XQJ-X-C-05C

06A

Riser

XQJ-X-C-06A
